SHANMON967裝載機

山東威猛工程機械有限公司

公司地址：山東省青州市南環路9567號

2019-12-7

549

信息詳情

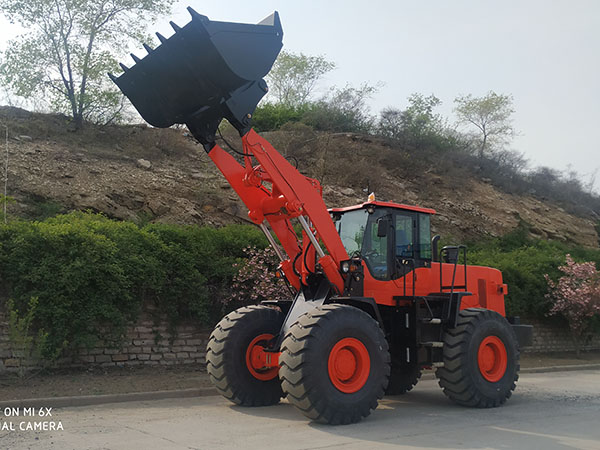

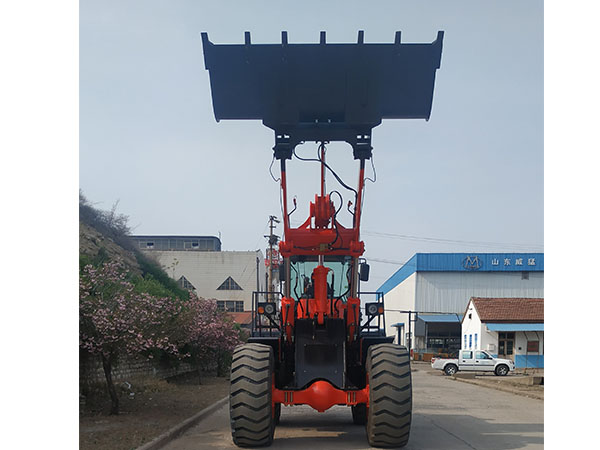

a整機照片02

一、主要特點：main feature

1、全液壓先導操縱，輕便靈活，微動效果好。Full hydraulic pilot manipulation, lightweight flexible, micro excellent results.

2、雙泵合流工作系統，同軸流量放大轉向，節能效果顯著。Double pump confluence working system, coaxial flow amplifying steering, energy-saving effect is remarkable.

3、先進的鏟斗自動放平功能，操縱更加方便，降低了司機的勞動強度。dvanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.

4、大功率渦輪增壓斯太爾發動機與加強加長型底盤和液壓系統完美配合，性能更可靠，更節油。Advanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.

5、單翻斗缸，“Z”型轉斗機構，實現巨大挖掘力。Single dump cylinders, "Z" type bucket mechanism, achieve huge digging force.

6、適合于重工況作業的驅動橋，齒輪模數大，針對大作業量惡劣工況設計，耐久性強。Suitable for the working condition of heavy homework drive axle, gear modulus, in view of the large production condition of design, strong durability.

7、加強型超大空間全景視野駕駛室，德國專業技術制造的彈簧減振優質沙發座椅，操作舒適安全。Enhanced large space of view cabin, Germany's professional manufacturing spring damping high quality sofa chair, comfortable and safe operation.

性能Performance	1	額定載重量rated load		6000KG
	2	整機重量overall weight		19400KG
	3	額定斗容 rated bucket capacity		3.3--4.5m3
	3	最大牽引力maximum tractive force		158KN
	4	最大崛起力maximum breakout force		204KN
	5	整機外形尺寸overall dimension (L×W×H)		8250×3100×3400mm
	6	最大爬坡能力maximum grade ability		30℃
	7	最大卸載高度maximum dump height		3450mm
	8	最大卸載距離maximum dump reach		1255mm
	9	最小轉彎半徑minimum turning radius		6500mm
發動機Engine	11	型號model		濰柴 Weichai Steyr WD10G240E21
	12	型式type		直列\水冷\干缸套\直噴 lnline water cooling dry cylinder injection
	14	氣缸數-缸徑×行程No. of cylinder-bore/stroke		6－126×130mm
	16	額定功率rated power		175kw--2200r/min
傳動系統 Transmission system	17	變矩器型式torque converter		雙渦輪四元件
	18	變速箱型式 gearbox mode		行星式Planectary
	19	檔位數gear shift	前進檔2個2 forward shift	倒退檔2個1 reverse shift
	20	最高車速 maximum speed		38km/h
驅動橋Drive axles	21	主減型式：main reducing spiral		螺旋傘齒輪一級減速 bevel gear grade 1reduction
	22	輪邊減速型式decelerating mode		一級行星減速 planetary reduction,grade 1
	23	軸距 wheel base (mm)		3350mm
	24	輪距 wheel tread		2250mm
	25	最小離地間隙minimum ground clearance		450mm
液壓系統 Hydraulic system	26	系統工作壓力system working pressure		18MPa
	27	動臂提升時間 boom lifting time		6.15+0.25s
	28	三項和 total time		10.65+0.5s
	29	油箱容量 fuel tank capacity		300L
	30	鏟斗自動放平功能 function of leveling automatically		有 yes
制動系統 Brake system	31	行車制動 service brake		氣頂油鉗盤式四輪制動 air over hydraulic disc brake on 4 wheels
	32	駐車制動 parking brake		手動環轂式制動 manual parking brake
輪胎 Tyre	33	規格type specification		26.5-25
	34	前輪氣壓 front tyre pressure		0.4Mpa
	35	后輪氣壓 rear tyre pressure		0.35Mpa
